工作示意图

Applications

●Food Industry: Yogurt, Fresh Butter, Ice Cream, Cheese, Whey, Beer, Wort, Yeast, Soft Drink, Fruit Jelly, Fruit Drink, Ketchup, Fruit Puree, Vegetable Mash, Pudding, Fruit Jam, Jelly, Flavor, Fruit Stuffing, Sweet, Yeast, Seasoning, Bread, Meat Gruel, Comminuted Meat, Meat Oil, Edible Oil, Candy, Syrup, Thin Cream Dressing, Chocolate, Etc.

●Daily Chemicals: Cleansing Facial Milk, Hair Gel, Hair Dyes, Essence Oil, Toothpaste, Detergent, Shampoo, Shoe Polish, Cosmetics, Perfumery Compound, Soap, Balsam, Etc.

●Pharmacy: Various Pill, Paste, Emulsifier, Syrup, Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products, Fish Meal, Pollen, Royal Jelly, Vaccine.

●Chemical Industry: Fat, Dissolvent, Resin, Polymer, Paint, Pigment, Dyes, Coating Material, Lubricant, Lubricating Grease, Oil Agent, Emulsified Asphalt, Adhesive, Plastic, Explosives, Glass Fiber Reinforced Plastics, Leather, Etc.

●Construction Industry: Various Coating, Including Indoor/outdoor Wall Coating, Corrosi on And Water Proof Coating, Ceramic Coating, Paint Coating, Ceramic Glazing, Etc.

●Other Industries: Plastic Industry, Textile Industry, Papermaking Industry, Coal Floatation Agent, Nanometer Material, Biochemical Industry, Etc.

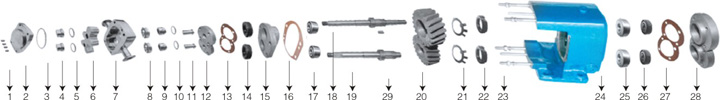

Rotor pump structure

<!--[if !supportLists]-->1.<!--[endif]-->Screw cap   2.Pump cover   3.Seal ring   4.Cap   5.Seal ring   6.Rotor   7.Pump cavity   8.Mechanical seal (stationary ring)   9.Mechanical seal(moving ring)   10.Seal ring   11.Bearing sleeve   12.Bearing cover   13.Seal gasket   14.Rubber oil seal   15.Bearing seat   16.Seal gasket   17.Bearing   18.Upper shaft   19.Lower shaft   20.Helicalgear   21.Stop washer   22.Cap   23.Screw   24.Pump body   25.Bearing  26.Rubber oil seal   27.Seal gasket    28.Bearing cover    29.Pin

Operation Principle

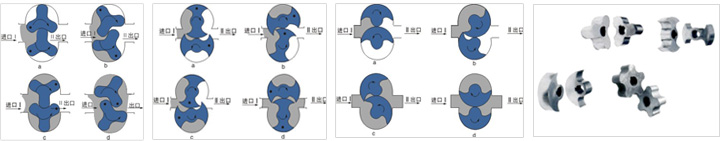

Rotor pump is also named rotary lobe pump, three-lobe pump, etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and revolve in the sequence of a→b→c→d. When it revolves to position a, only housing I is filled with medium. when it revolves to position b, housing B encloses part of the medium, when it goes to position c, housing A encloses medium, and finally it goes to position d, then housing A, B and II are interlinked and the medium is transported to the outlet. As this process is repeated, medium (material) is transported continuously.
