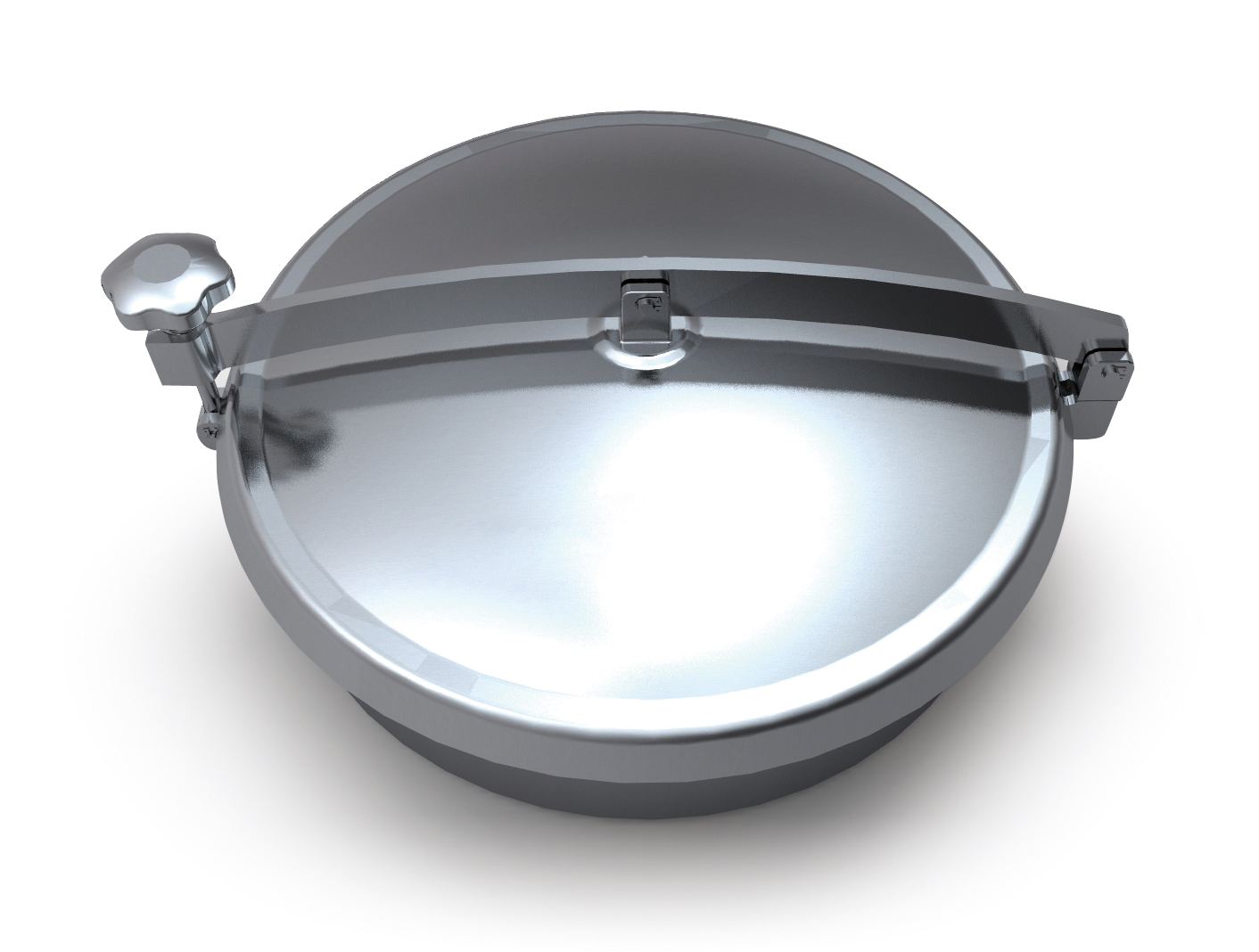

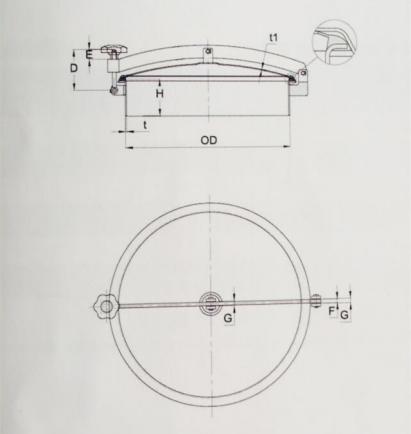

Round outward manway
|
Size
|
OD (mm)
|
t (mm)
|
H (mm)
|
t1 (mm)
|
Pres (Bar)
|
|
200
|
200
|
2.5
|
100
|
2
|
0-0.1
|
|
219
|
219
|
2.5
|
100
|
2
|
0-0.1
|
|
300
|
300
|
2.5
|
100
|
2
|
0-0.1
|
|
350
|
350
|
2.5
|
100
|
2
|
0-0.1
|
|
400
|
400
|
3
|
100
|
2.5
|
0-0.1
|
|
430
|
430
|
3
|
100
|
2.5
|
0-0.1
|
|
450
|
450
|
3
|
100
|
2.5
|
0-0.1
|
|
500
|
500
|
3
|
100
|
2.5
|
0-0.1
|
|
600
|
600
|
4
|
100
|
3
|
0-0.1
|
|
420*300
|
420*300
|
3
|
100
|
2.5
|
0-0.1
|
Height and frame and cover can be changed according to your requirement,also include sight glass.
Feature：
Gasket：Silicone，EPDM，NBR，FPM in accordance with FDA177.2600；
Material：304，316L；
Internal surface：0.8μm-0.4μm；
Outside surface：Mirror polished，matte，sand-blasting.

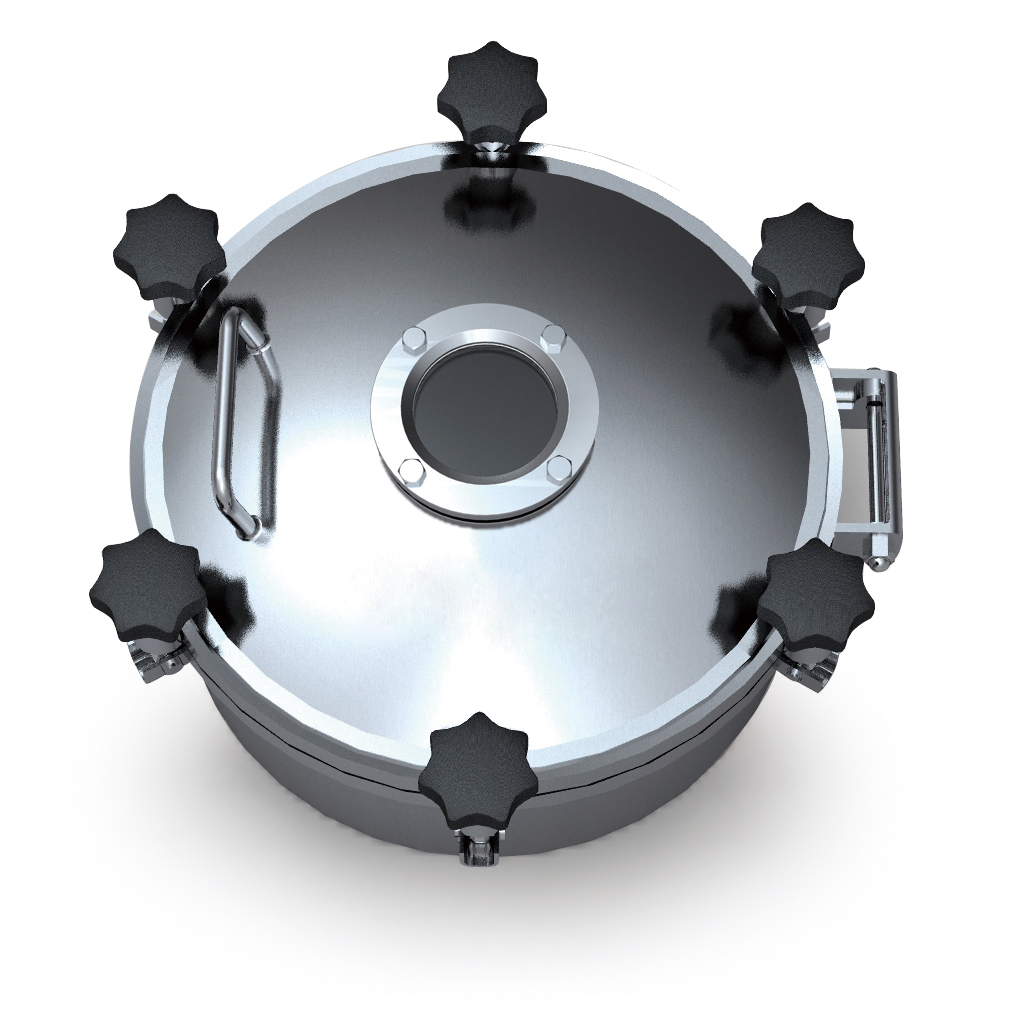

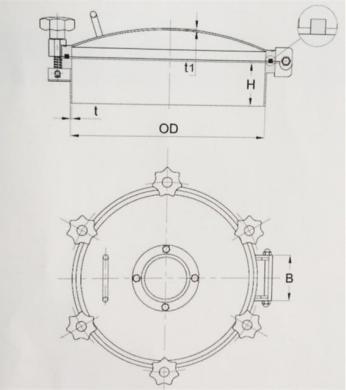

Round Otward Manway With Sight Glass
|
Size
|
OD (mm)
|
t (mm)
|
H (mm)
|
t1 (mm)
|
Pres (Bar)
|
|
200
|
206
|
3
|
100
|
3
|
1-3
|
|
300
|
306
|
3
|
100
|
3
|
1-3
|
|
350
|
356
|
3
|
100
|
3
|
1-3
|
|
400
|
406
|
3
|
100
|
3
|
1-3
|
|
430
|
436
|
3
|
100
|
3
|
1-3
|
|
450
|
456
|
3
|
100
|
3
|
1-3
|
|
500
|
508
|
4
|
100
|
3
|
1-3
|
|
600
|
608
|
4
|
100
|
4
|
1-3
|
Height and frame and cover, sight glass can be changed according to your requirement,also include sight glass.
Feature：
Gasket：Silicone，EPDM，NBR，FPM in accordance with FDA177.2600；
Material：304，316L；
Internal surface：0.8μm-0.4μm；
Outside surface：Mirror polished，matte，sand-blasting.

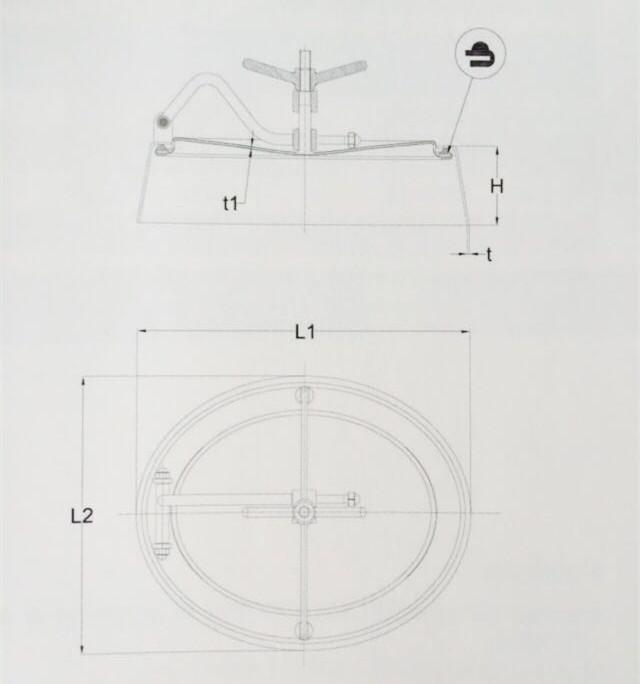

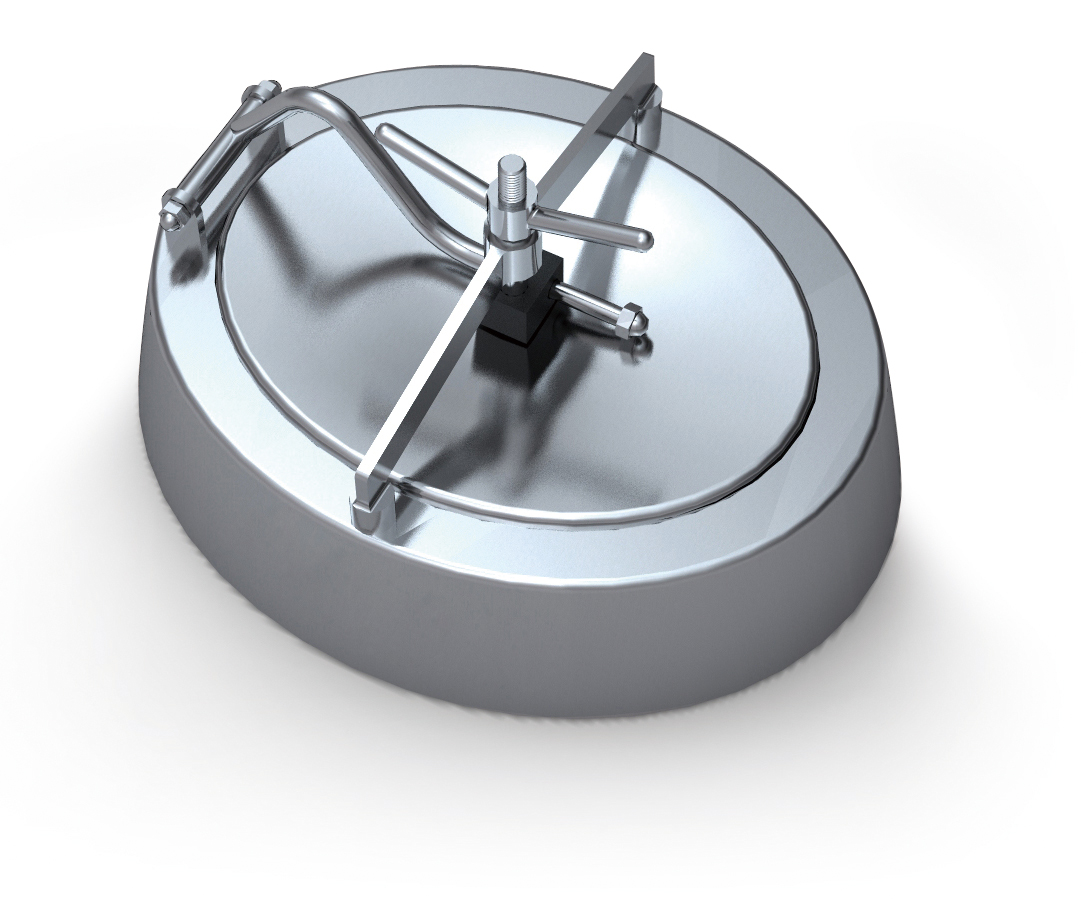

Oval Inward Manway with Bevel Edge
|
Size
|
OD (mm)
|
t1 (mm)
|
H (mm)
|
t2 (mm)
|
Pres (Bar)
|
|
550*450
|
550*450
|
3
|
80
|
4
|
1-3
|
|
550*450A
|
550*450
|
4
|
80
|
5
|
1-3
|
|
565*465
|
565*465
|
4
|
100
|
5
|
1-3
|
|
580*480
|
580*480
|
4
|
133
|
5
|
1-3
|
Height and frame and cover can be changed according to your requirement.
Feature：
Gasket：Silicone，EPDM，NBR，FPM in accordance with FDA177.2600；
Material：304，316L；
Internal surface：0.8μm-0.4μm；
Outside surface：Mirror polished，matte，sand-blasting.
|
