Jacket Kettle alternate name steam kettle, steam stewing,mezzanine steam kettle.  Usually consists of pot body and feet, pot body is composed of inner and outer spherical pot body of double layer structure, intermediate sandwich ventilation with steam heating.  Such as stationary, tilting type, mixing type style. Jacket Kettle has the characteristics of  large heating area, high thermal efficiency, uniform heating, short liquid boiling time, heating temperature easy to control, beautiful, easy installation, convenient operation, safe and reliable.

1. In the form of the structure: tilting jacketed kettle,Vertical ( fixation)  jacketed kettle.

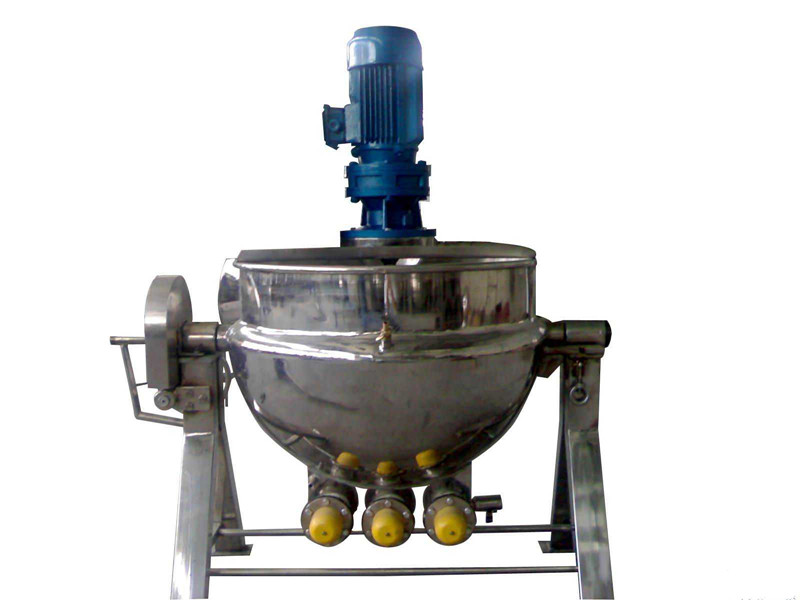

2. According to the heating mode can be divided into: Electrical Heating jacket kettle, steam heating jacket kettle, gas heating jacket kettle,electromagnetic heating  jacket kettle.

3. According to sealing methods can be divided into: Without cover type, flat cover type, vacuum type.

The overall structure

         Stationary mainly consists of pot body and brace;

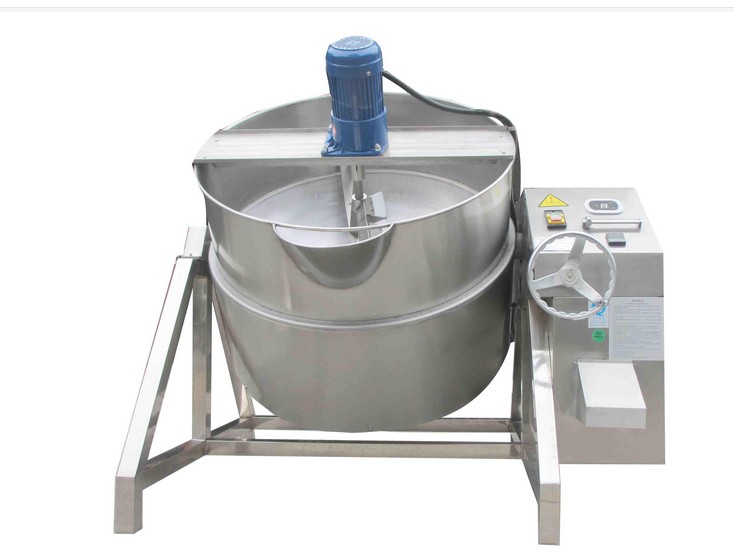

         Tilting type mainly consists of pot body and tilting frame;

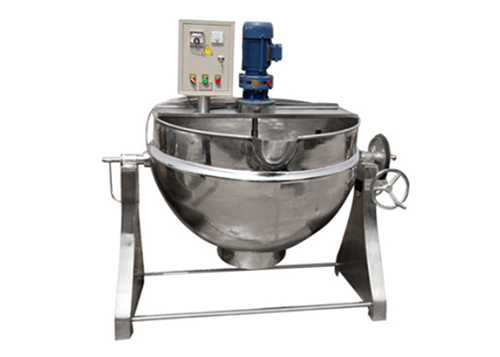

         Agitator mainly consists of pot body and the mixing plant.

Heating efficiency
        Jacket kettle  in a certain pressure steam as heat source (also can choose electric heating), it has the heated area is large, the thermal efficiency with certain pressure steam as heat source, high, uniform heating, short liquid boiling time, heating temperature easy to control, etc.

Safe and convenient
       Jacket kettle inner using acid and heat resistant austenite stainless steel manufacturing , equipped with a pressure gauge and relief valve , beautiful shape,easy install,easy to operate, safe and reliable.

Jacket Kettle Parameters
Model	Heating area   （㎡）	Amount of heat conduction oil （kg）	Power and radical （KW×Z）
50L	0.45	20	3×3
100L	0.58	30	4×3
150L	0.88	45	5×3
200L	1.13	55	6×3
300L	1.43	65	6×3
400L	1.75	75	8×3
500L	2.00	120	9×3
600L	2.30	160	9×3
