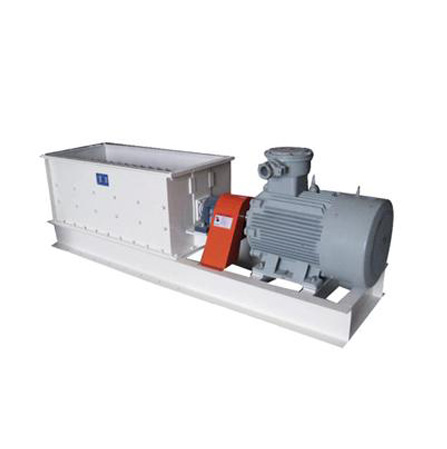

Toothed crusher for non-hard core fruits,berries,plant fiber varieties(such as vegetables,stem plants, ect.) broken.
Theory
The materials are to be broken into the crusher inlet,through the broken screw mechanism to promote the area,motor driven disc cutter filled with high-speed rotation,the material for grinding crushing,crushing the material through the bottom of the discharge port.
Product Features
1.Mechanically adjustable,broken pulp size adjustable,easy to operate;
2.Unique serrated disc structure,broken better,more efficient;
3.Advance and reasonable structure design,installation,maintenance,cleaning is very easy’
4.Automatic electrical controls,safe and reliable operation;
5.Small size,yield balancing test, smooth operation and low noise.
Technical
|
Parameter\Model
|
KDG-5
|
KDG-10
|
KDG-20
|
KDG-30
|
KDG-50
|
|
Capacity
|
1-7
|
8-15
|
16-25
|
26-35
|
36-50
|
|
Main power
|
7.5
|
11
|
18.5
|
22
|
30
|
|
Spiral power
|
1.1
|
1.5
|
2.2
|
3
|
4
|
|
Spiral Diameter
|
210
|
240
|
280
|
320
|
370
|
|
Rotor speed
|
1440
|
1440
|
1440
|
1440
|
1440
|
|
Crushing Particle
|
2-5
|
2-5
|
2-5
|
2-5
|
2-5
|
|
Gear number
|
20
|
20
|
24
|
24
|
24
|
|
Dimension
|
1580*550*
650
|
1720*560* 670
|
1860*580* 700
|
2100*630* 750
|
2260*650* 780
|
|
