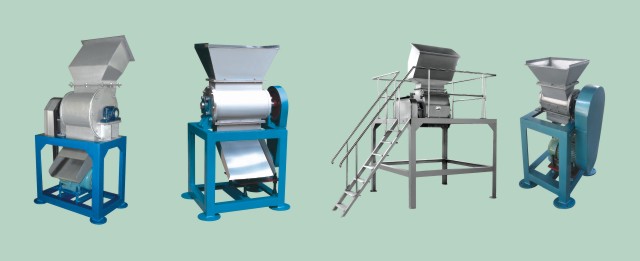

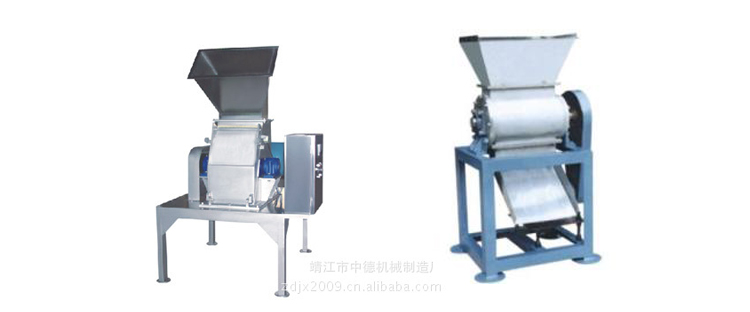

Crushing machinery and equipment

     The machine is mainly used to crush fruit and vegetable. It consists of side cover,flying blade,sieve,machine body and spindle parts.

     The whole machine is composed of material feeding hopper, side cover, machine body, spindle, bearing seat, motor, machine frame and material discharge hopper etc.

     During the operation, the motor will drive the spindle is installed with flying blade for high speed rotation.The material drop into the material feeding hopper through the lifter and are crushed by the flying blade rotating at high speed.Due to the function of centrifugal force,the materials will drop into the storage tank from the sieve with waist-shaped holes,and then will be transferred to the next procedure by the delivery pump.

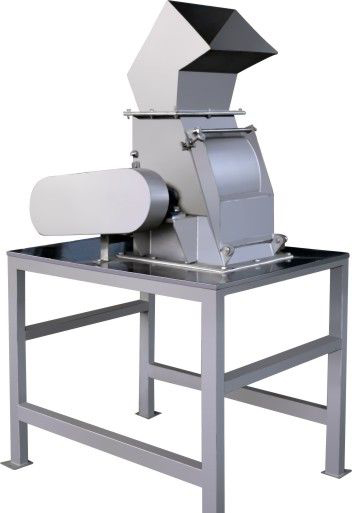

     The advantage of hammer type crushing machine is the granularity of the crushed materials is even and the size depands on the sieve with waist-shaped holes.

Technical parameters of hammer type crushing machine

Model type	Power	Hammer number	Capacity	Mechanical size
KDC-5	11	24	5	1200*1200*1800
KDC-10	18.5	33	10	1500*1500*1800
KDC-20	22	42	20	2000*2000*1800
KDC-25	30	54	25	2000*2000*1800

Technical parameters of hammer type crushing machine

Model type	Power	Hammer number	Capacity	Mechanical size
HKDC-0.5	1.1	12	0.5	600*600*1200
HKDC-2	3	24	2	800*600*1200
HKDC-5	5.5	36	5	800*1000*1200
