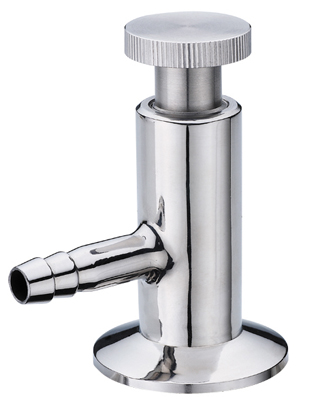

This valve is widely used in sample from under tank or pipeline system aseptic conditions and can sterilize before or after the sample
Advantages
SIP by alcohol or steam
Material sealed by diaphragm directly
Typical sample, excellent repeatability
No second-time contamination, batch or mini sample allowed
Technical parameter
Max. working press(valve close):10 bar
Max. sterilization Temp.:121-134℃
Material
Valve body: stainless steel SUS304 or SUS316L
Valve stem: stainless steel SUS304 or SUS316L
Seal :EPDM、PTFE
|
