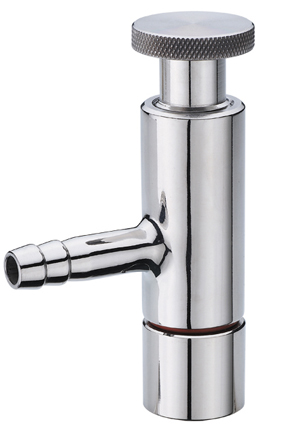

This valve is widely used in sample from under tank or pipeline system aseptic conditions and can sterilize before or after the sample

Advantages

SIP by alcohol or steam

Material sealed by diaphragm directly

Typical sample, excellent repeatability

No second-time contamination, batch or mini sample allowed

Technical parameter

Max. working  press(valve close):10 bar

Max. sterilization Temp.:121-134℃

Material

Valve body: stainless steel SUS304 or SUS316L

Valve stem: stainless steel SUS304 or SUS316L

Seal :EPDM、PTFE
