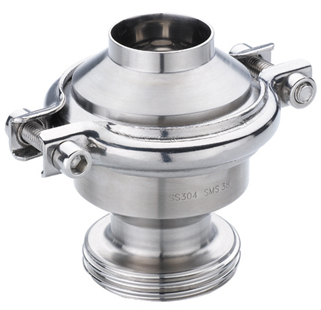

Check valve is used in stainless steel pipe system to prevent reverse flow.

Working Principle

The valve opens when the pressure below the valve plug exceeds the pressure above the plug plus spring force

The valve close when pressure equalization has been achieved

A higher counter pressure will press the valve plug against the seat and makes the valve sclosed

Material

Material contact parts: 304 or 316L

Sealing material: EPDM

Connection style

Welded, threaded, clamped, flange

To assure the connection and substitution with imported facilities, all the connection styles with pipe or equipment are made to DIN 11850, IDF/ISO, SMS international standard size.

Technical Parameter

Required differential pressure to turn on the valve that fitted in a vertical pipeline are about＆#58

Max. Pressure for transfer material: 10 bar

Max. Temperature:140℃(EPDM)

Min. Temperature:-10℃
