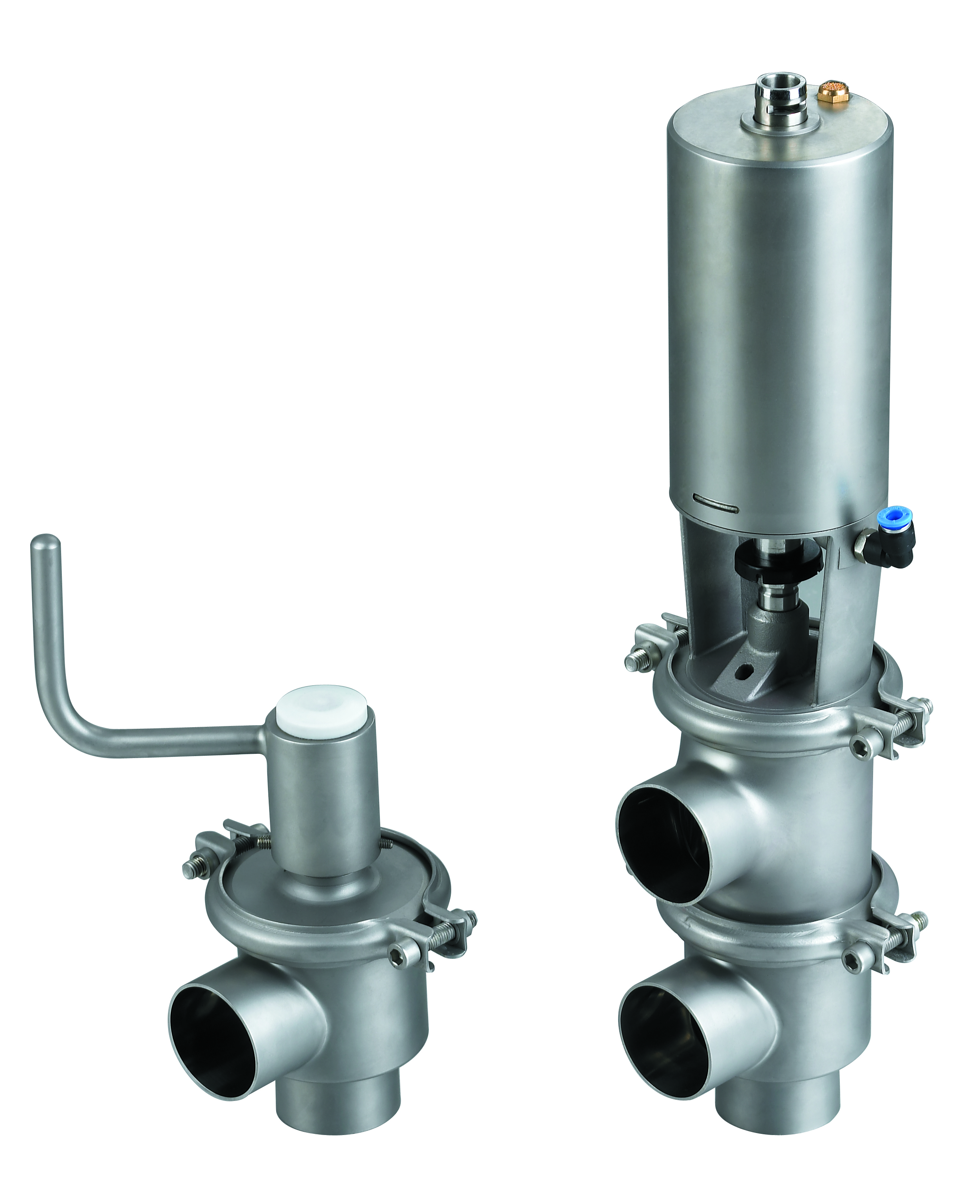

New-style sanitary stop/switch valves possess more improved safety, clearance, durability and appearance
Having open supporter which separates the pneumatic actuator and valve body, check the shaft seal directly. This design separates the gearing and product parts, prevent the heat transfer from valve body to pneumatic device.
“NC” and “NO” functions can be instantly switched
Spherical valve body has ideal fluidity and clearance
Dealing with material becomes much milder
Standard valve body design makes the joint style more flexible and various
Metal stop mechanism assures the long life of the seal
Quick, convenient assembly and maintainance operation
Structure form
F-model positive direction single seat valve: used to separate the cross parts of the pipe system. It adopts single valve to seal, cutting off the two pipelines
C-model converse single seat valve: used to separate the cross parts of the pipe system. It adopts single valve to seal , cutting off the two pipelines
N-model concurrent single seat reversal valve: used to switch the liquid in the pipe system, switch the two ways enter and one way out.
B-model diffluence double seats valve: used to switch the liquid in the pipe system, switch the one ways enter and two ways out.
Material
Material contact parts: 304 or 316L
Sealing material: standard EPDM silicagel, fluorinegel for option
Surface treatment
Outside :sandblast Ra≤1.6μm
Sublight Ra≤0.6μm
Inside:polish Ra≤0.6μm
Requirements for compressed air quality that the executor needs
Compressed air joint: air pipe equips with air adapter R1/8”
Max. grain size: 0.01mm
Max. oil content: 0.08ppm
Dew point: below 10℃ or less
Max . water content: 7.5g/kg
|
