 Hit:1455  Time:2016-07-20






       KDGTF Tube Filter is a improved small tube strainer which can remove a small amount of solid particles in the liquid, also can protect compressor, pump, instruments and other equipment to work normally.

        KDGTFTube Filter adopts multiple polishing processing steps to ensure that the interface Ra reach to 0.4μm close to sanitary level. All of the surface is mirror polished.



Operating principles

Filter is used to prevent the solid particles from media mixed into the follow-up pipeline facilities.The large solid particles or impurities will remaining in it after the media is put into proper filter core,as it can reach the request.When surrounding pressure of the filter exceeds demand, or when the filter core is damaged, you can remove the filter, clean new filter core, and re-install it.



Application

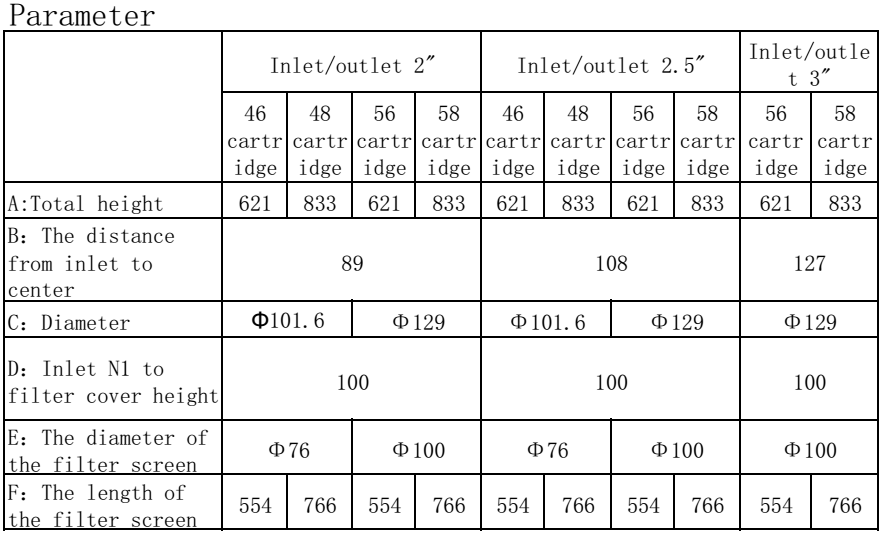

SpecificationDN20-DN2003/4”-6”

Material304/316L

Surface treatmentmirror polishedmatt polishingsandblasting

Filter accuracy100 mesh-400 mesh


All kinds of liquid particle filtering.

Edible oil, beverage, wine filtration.

Chemical filter.

Compressors, pumps, instrumentation and other equipment pre-filtering and protection.
