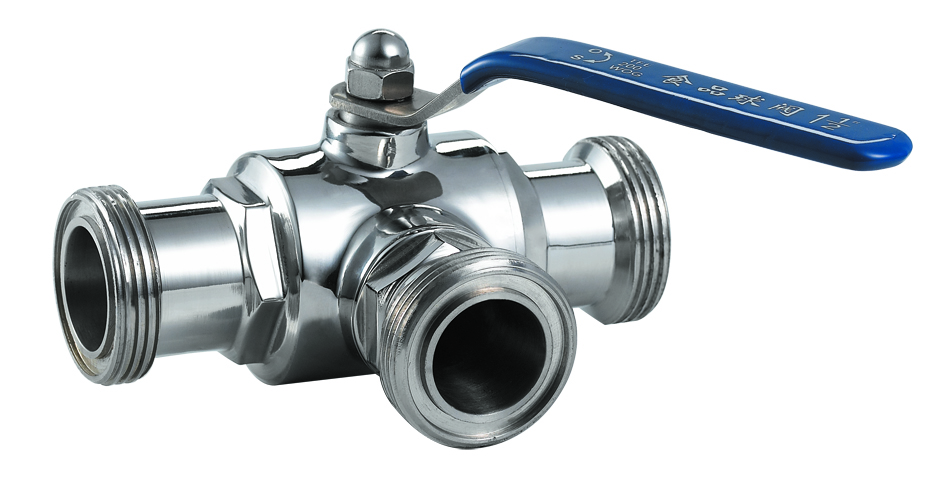

This sanity ball valve can be used to transfer material. The application areas include food, beverage pharmacy, chemical industries and so on. The completelyfull-through design for valve chamber can not bring any liquid resistance, so it is the best choice for dealing with sticky or grain liquid.

Technical parameters

DN：DN25~DN100  1”~4”

Body pressure purability：10bar

Max service pressure：8bar

Temperature：-10℃~ +150℃

Material

Material contact parts：304 or 316L

Sealing material：PTFE、EPDM

Surface treatment

Outside：Sandblast Ra≤1.6μm

        Sublight Ra≤0.6μm

Inside：Polish Ra≤0.6μm
