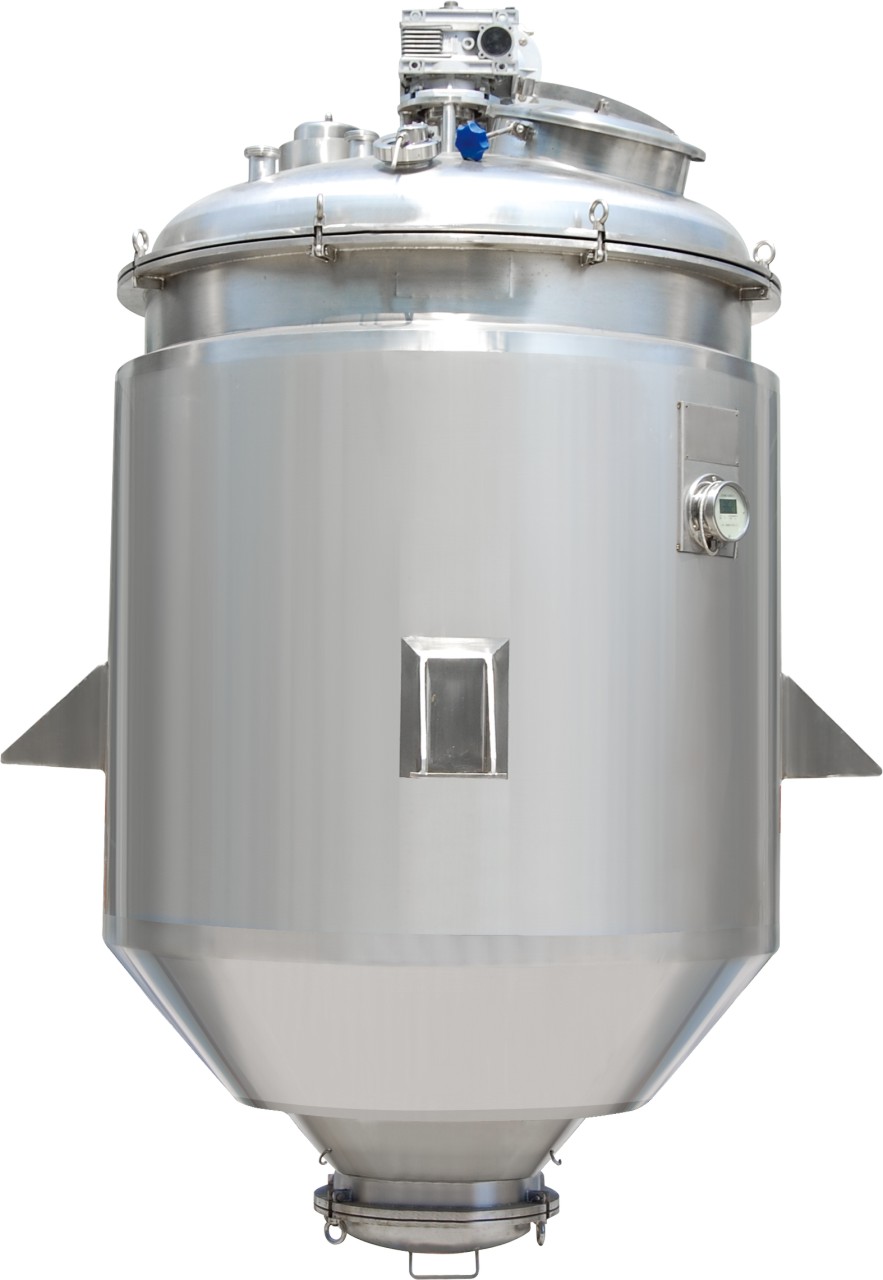

This extracting tank is used to extract tea from the tea leaves, or make medicine from herbal medicine.
All the tank wall is made of high quality SUS304 stainless steel, the jacket adopts high density of PU as insulation and was made out of new procedures; this tank can use steam to heat the product inside with steam or hot water inside of the dimple pad;the paddle type agitator is mounted from top at the center;other standard attachments such as: airtight manhole, high and low level probe, temperature sensor, the extracted liquid product is discharge from bottom outlet; dregs are also discharge from bottom where a net is fixed to separate the dreg from the liquid product; the top cover is elliptical type and bottom base is of conical types.Pneumatic discharge can be added according to the customer’s requirement.
Technical parameter
|
Model
|
Diameter(L)
|
Inter diameter (mm)
|
Height(mm)
|
Insulation (mm)
|
Jacket
(mm)
|
Diameter of inlet/outlet
|
|
KDET-500
|
500
|
800
|
2140
|
50
|
1.5
|
Φ38 / Φ51
|
|
KDET-1
|
1000
|
1050
|
2380
|
50
|
1.5
|
Φ38 / Φ51
|
|
KDET-1.5
|
1500
|
1180
|
2550
|
50
|
1.5
|
Φ38 / Φ51
|
|
KDET-2
|
2000
|
1340
|
2760
|
50
|
1.5
|
Φ38 / Φ51
|
|
KDET-2.5
|
2500
|
1420
|
2940
|
50
|
1.5
|
Φ38 / Φ51
|
|
KDET-3
|
3000
|
1540
|
3050
|
50
|
1.5
|
Φ38 / Φ51
|
|
KDET-4
|
4000
|
1650
|
3200
|
50
|
1.5
|
Φ38 / Φ51
|
|
KDET-5
|
5000
|
1780
|
3250
|
50
|
1.5
|
Φ38 / Φ51
|
|
